Auto Router

Auto Router is an intent-based model-selection layer. Instead of hard-coding a model in your application, you point requests at an Auto Router and it picks the best model group for each message based on what the user actually asked for — then the normal routing, load-balancing, and failover machinery takes over.

Auto Router is not a routing strategy. It runs before the strategy you configured in Routing & Load Balancing — it rewrites the requested model to the chosen group, and the Router then selects a healthy deployment for that group the usual way. The two are independent and compose cleanly.

---

How it works

Each Auto Router holds a set of routes. A route is a target model group plus a description of the kinds of requests it should serve, expressed as a handful of example utterances. On every request:

1. Auto Router extracts the text from the request messages.
2. It matches the text against the routes and selects the best fit.
3. The selected route’s model group replaces the requested model.
4. The Router proceeds with its normal strategy (least-busy, lowest-cost, …) and failover behaviour.
5. If no route matches — or anything goes wrong — the request falls back to the router’s configured default model. Auto Router never blocks a request.

Two matching engines are available, selected per router:

Mode	How it matches	Best for
Embedding (default)	Embeds the message and each route’s utterances; picks the route with the highest cosine similarity above its threshold	High volume, low overhead, deterministic
Classifier	Asks a small LLM to classify the message into one of the routes	Subtle intent where keyword/embedding similarity is ambiguous

Both engines run entirely inside your Routero deployment using an internal service account — the embedding and classification calls loop back through the gateway’s own /embeddings and /chat/completions endpoints. They do not consume your virtual-key budget and do not call external providers at your expense.

Auto Router is static and configuration-driven — it does not learn or adapt over time. The routing decision is fully determined by your route definitions, the message, and the embedding/classifier model. To change behaviour, edit the routes.

---

Defining routes

A route has four parts:

Field	Description
name	The target model group to route to (must match a configured model group). Must be unique within the router.
description	A short human-readable summary of what the route handles. Used by the classifier mode.
utterances	Example phrases that characterise the route. The embedding engine compares the incoming message against these. Up to 50 per route, 500 per router.
score_threshold	Optional. Similarity score (0–1) a route must exceed to win in embedding mode. Default 0.2.

Example route table for a triage router:

Route (model group)	Description	Example utterances
reasoning	Complex reasoning, maths, analysis	“prove this theorem”, “debug this algorithm”, “analyse the trade-offs”
coding	Code generation and explanation	“write a python function”, “refactor this class”, “explain this stack trace”
general (default)	Everyday questions and chat	everything else

---

Creating an Auto Router

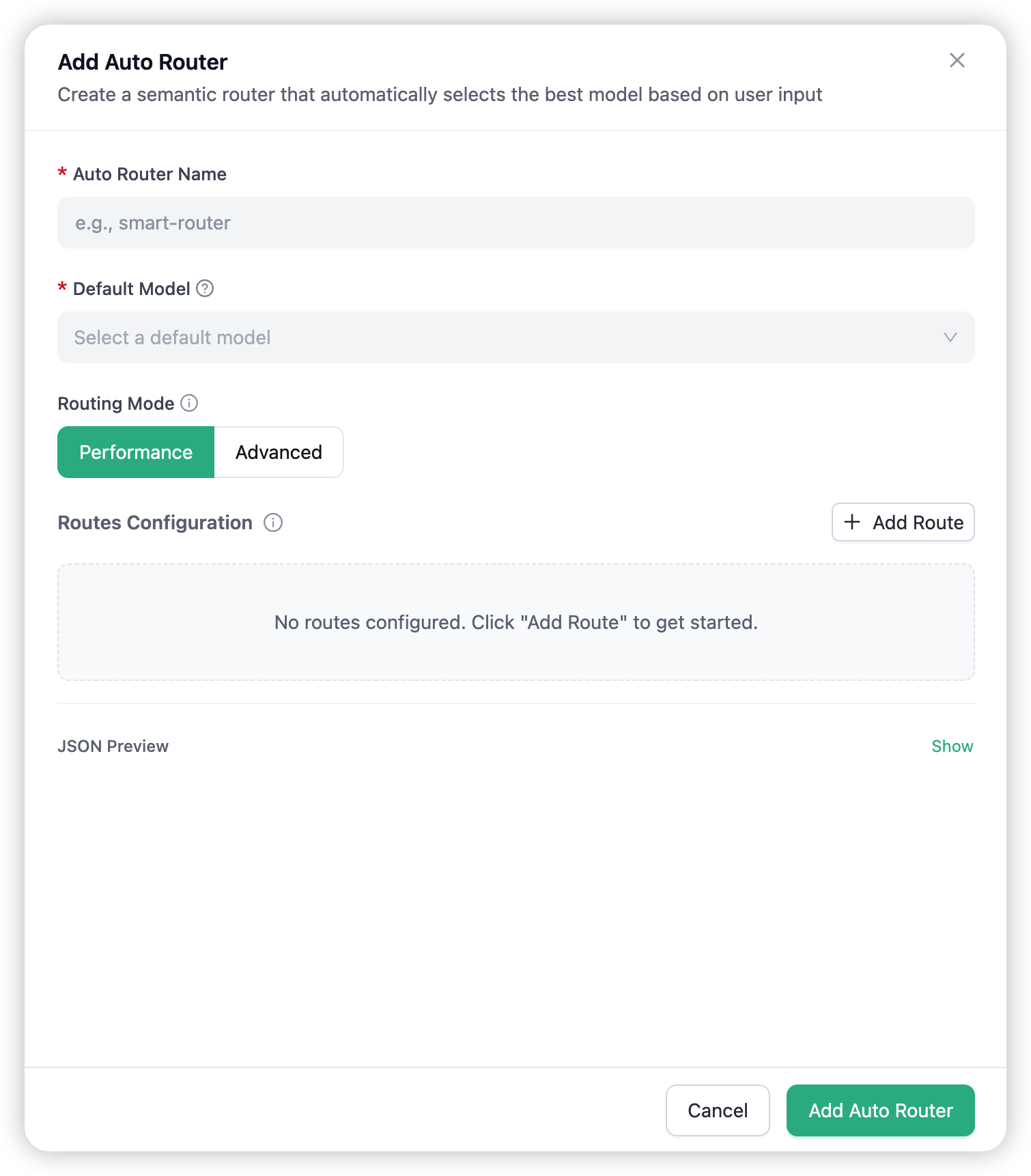

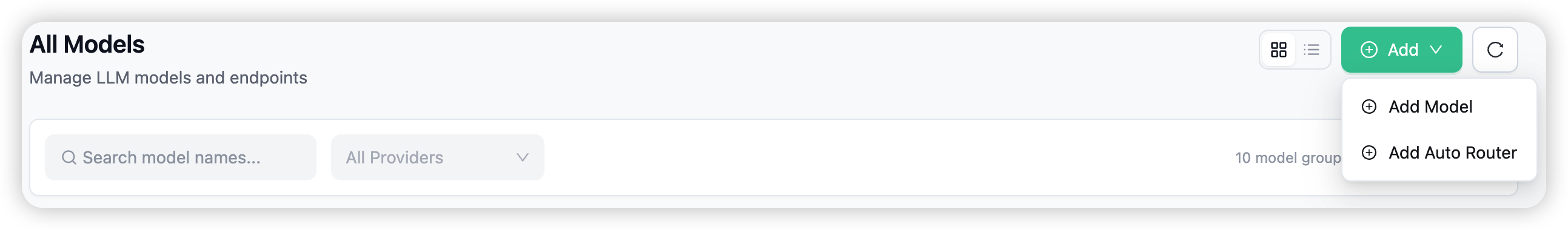

Auto Routers are created as virtual deployments from the dashboard or the model-management API. The simplest path is the dashboard: Models & Endpoints → Add → Auto Router.

The fields the gateway stores:

# Conceptual — created via the dashboard "Add Auto Router" flow or the model API,
# not written directly into your main config file.
- model_name: triage
  litellm_params:
    model: auto_router/triage
    auto_router_config: |
      {
        "routes": [
          { "name": "reasoning", "description": "Complex reasoning, maths, analysis",
            "utterances": ["prove this theorem", "analyse the trade-offs"],
            "score_threshold": 0.3 },
          { "name": "coding", "description": "Code generation and explanation",
            "utterances": ["write a python function", "refactor this class"] }
        ]
      }
    auto_router_default_model: general
    auto_router_routing_mode: embedding      # or "classifier"
    # auto_router_classifier_model: internal-gpt-4o-mini   # required only in classifier mode

Required fields:

• model — must start with auto_router/. The suffix becomes the router’s name.
• auto_router_config — a JSON string with the routes array.
• auto_router_default_model — the model group used when no route matches or the engine errors.

Optional fields:

• auto_router_routing_mode — embedding (default) or classifier.
• auto_router_classifier_model — the model used for classification (required in classifier mode; ignored otherwise).
• auto_router_embedding_model — override the embedding model used in embedding mode.

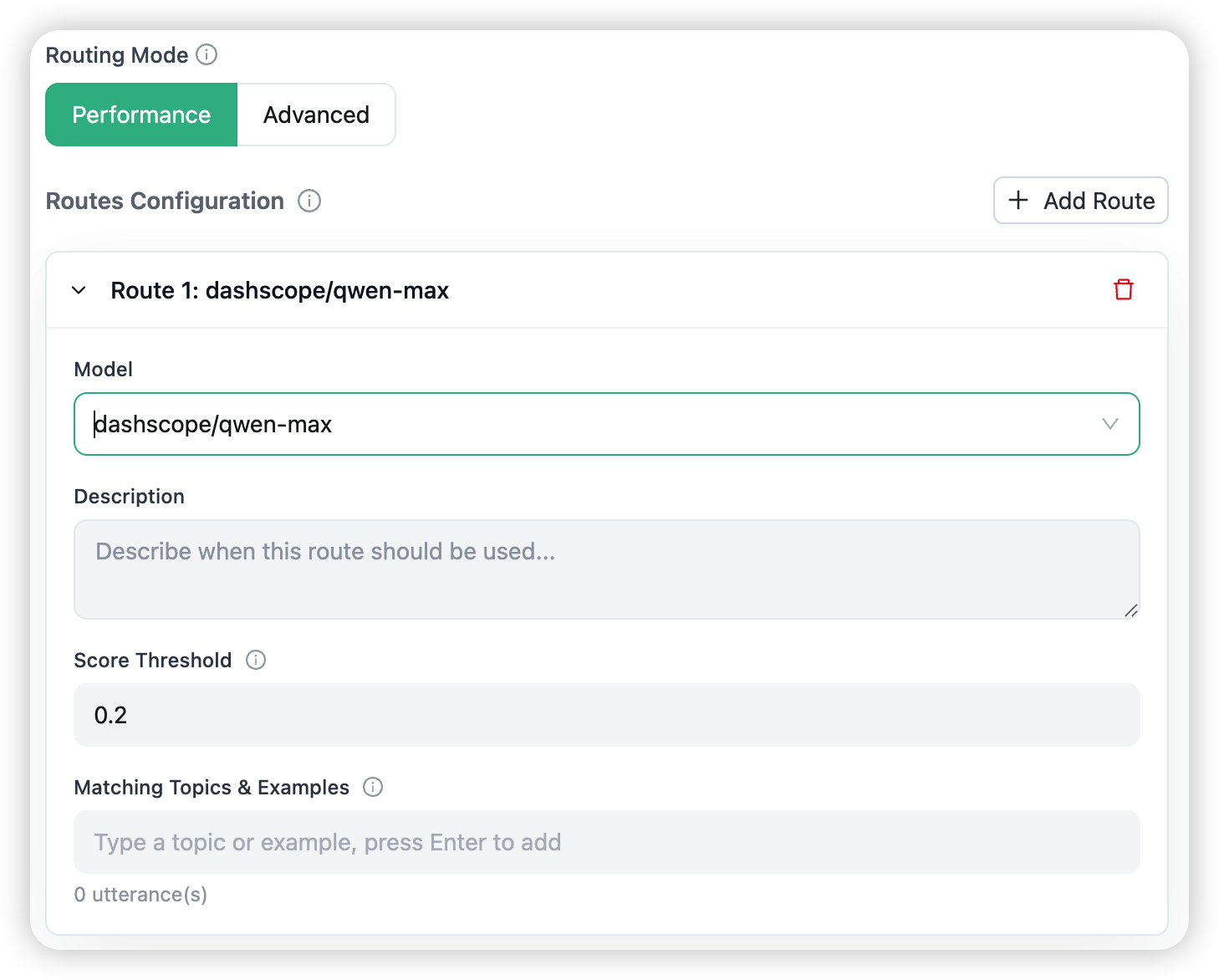

The dashboard form validates uniqueness, thresholds, and utterance limits for you, and shows a live JSON preview of the config.

---

Calling an Auto Router

From the caller’s perspective, an Auto Router is just another model name. Point your existing request at it:

response = client.chat.completions.create(
    model="auto_router/triage",          # the Auto Router picks the real model group
    messages=[{"role": "user", "content": "Prove that the sum of two evens is even."}],
)

The gateway selects reasoning for that message, hands off to the Router for deployment selection, and returns the response. The response carries headers showing which deployment ultimately served the call:

• x-routero-model-id — the chosen deployment’s model id
• x-routero-model-api-base — the chosen deployment’s API base

Auto Router inspects message content, so it is skipped for requests without messages (for example pass-through and non-chat endpoints) — those go straight to the requested model.

---

Multi-tenancy and regions

Each Auto Router is org-scoped: a router belongs to one organisation, and its routes are resolved only for keys in that organisation. When you have per-organisation model groups, give each org its own Auto Router referencing its own groups.

The internal embedding and classifier models default to region-appropriate values so a China-region workspace uses domestic models out of the box:

Region	Default embedding model	Default classifier model
China (cn-north-1)	internal-text-embedding-v4	internal-qwen-plus
All other regions	internal-text-embedding-3-small	internal-gpt-4o-mini

Override either by setting auto_router_embedding_model / auto_router_classifier_model on the router.

---

Dependencies and enablement

Mode	Requirement
Embedding	The semantic-router Python package. The gateway raises a clear install instruction if a router in embedding mode is created without it.
Classifier	No extra dependencies — uses the standard chat-completions path.

Both modes need the internal embedding and classifier models present in your model list (they are tagged usage: auto_router in the default configuration) and a seeded internal service account. These are part of a standard Routero deployment; no Redis, vector database, or GPU is required for Auto Router itself.

---

Combining with the rest of the gateway

Auto Router composes with every other gateway capability:

• Routing & failover — the chosen model group is load-balanced and failed over exactly like any directly-requested model.
• Policies — a model group that an Auto Router routes to can itself carry a capability policy (guardrails, prompts, memory, token saving).
• Guardrails / prompts / memory / token saving — apply to the resolved request as usual. See AI Capabilities.

→ Routing & Load Balancing for the deployment-selection strategies Auto Router hands off to. → Failover & Fallbacks for retry behaviour on the selected group.
